Industrial Belt Conveyor Metal Detector Stainless Steel Metal Detection System
This industrial belt conveyor metal detector boasts exceptional sensitivity and reliability, accurately identifying ferrous, non-ferrous metals, and stainless steel contaminants to ensure that every product flowing through the production line meets the highest safety standards. The digital stainless steel metal detection system features a corrosion-resistant stainless steel construction that is easy to clean, while the belt conveyor system provides smooth and consistent product transport. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

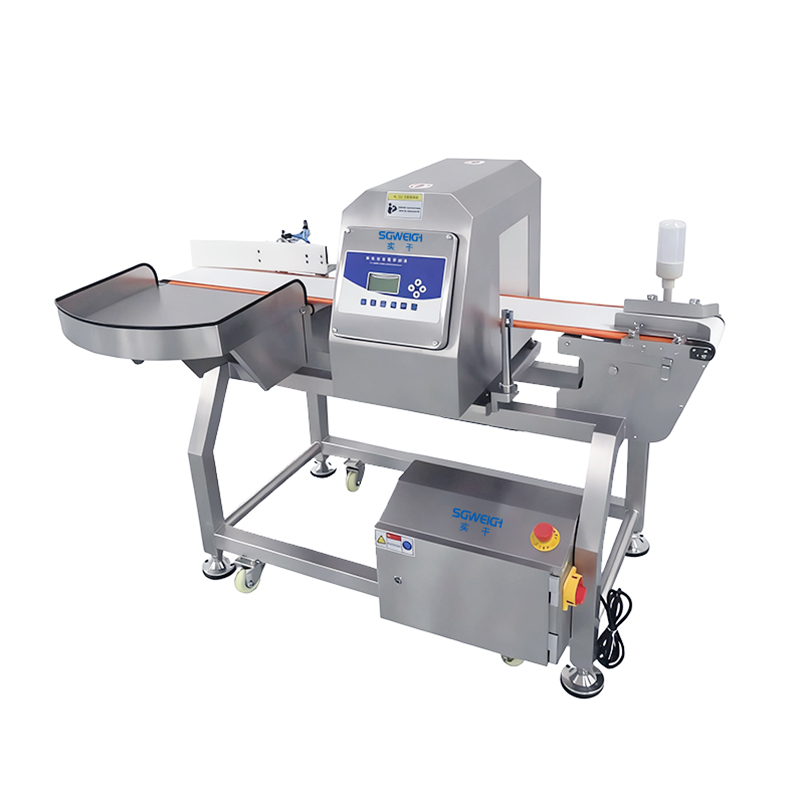

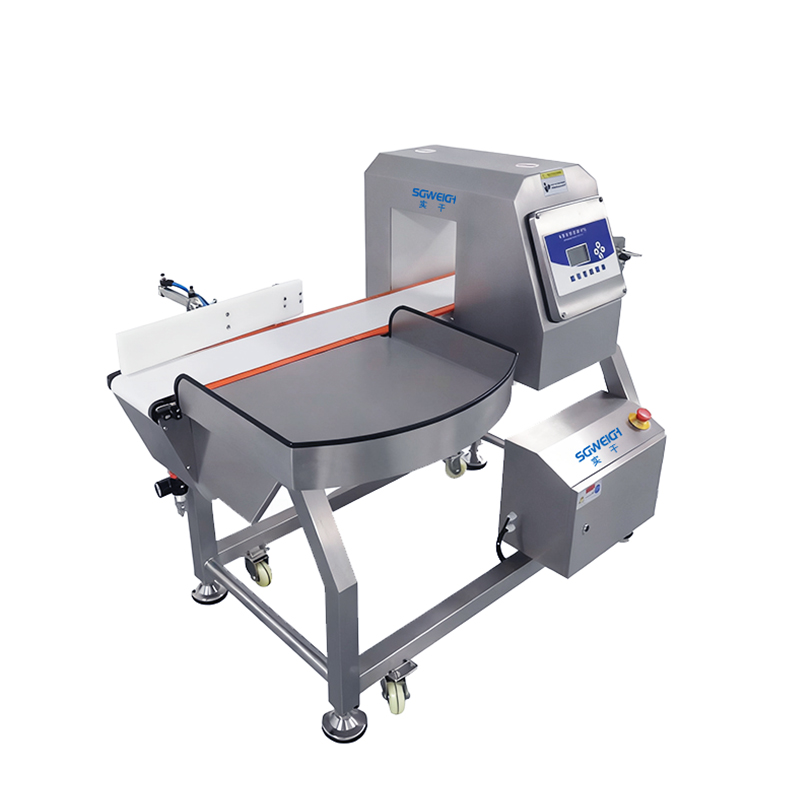

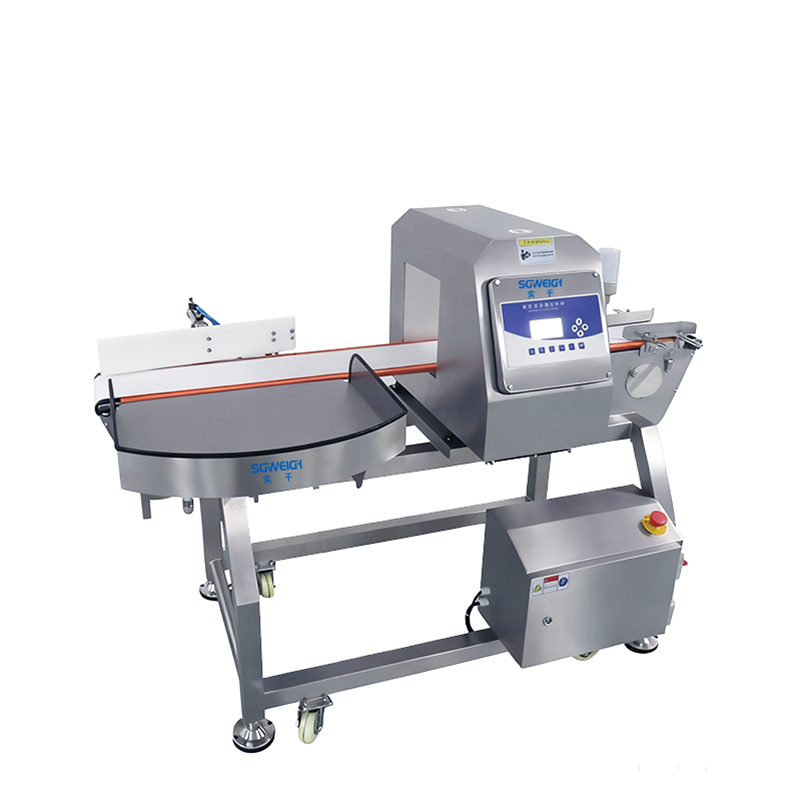

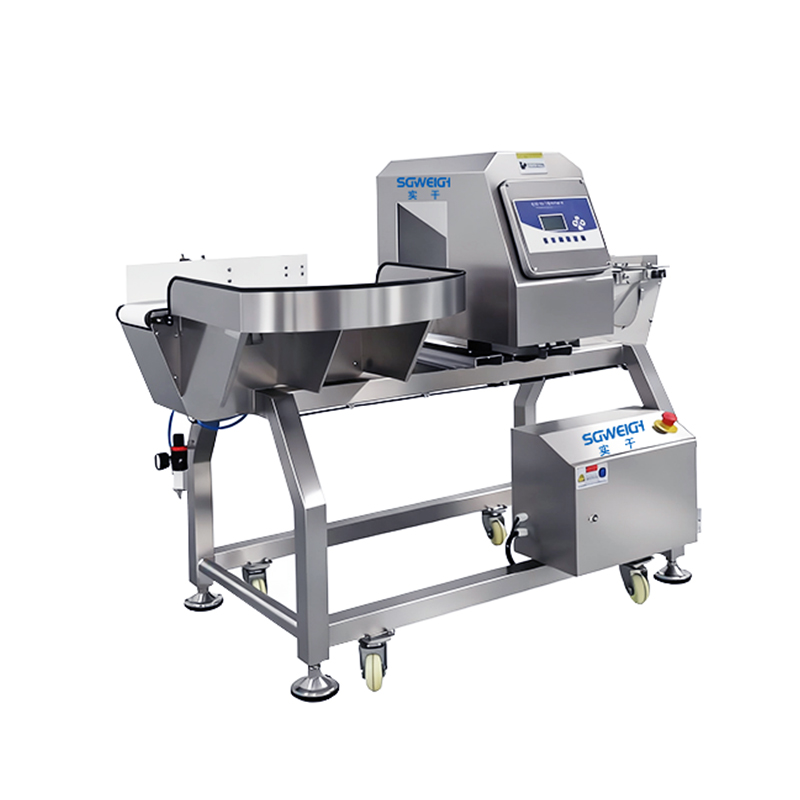

Industrial belt conveyor metal detector photos
Type: SG-M400 Digital All-metal Detector Machine (Accept custom)
Detection Sensitivity(Empty statue):H 100mm: Fe≥ φ0.8mm, Non-Fe ≥φ1.5mm , SUS≥φ1.5mm; H 120mm: Fe≥ φ0.8mm, Non-Fe ≥φ1.5mm , SUS≥φ2.0mm;H 150mm: Fe≥ φ1.0mm, Non-Fe ≥φ1.5mm , SUS≥φ2.0mm;H 200mm: Fe≥ φ1.28mm, Non-Fe ≥φ2.0mm , SUS≥φ2.5mm
Effective hole width detection: 150-1000mm (Accept custom)
Effective hole detection level: 80-500mm(Accept custom)
Conveyor belt,max speed: 25m/min
Material for conveyor belt: Food grade PU belt
Protection grade: IP65
Display and operation mode: LED flat key input
Deadweight of machine: About 120kg
Powder supply: AC220V 50Hz
Powder: 200w
Alarm way: Alarm and belt stop, or automatically reject
Overall dimensions: About L1500xW850xH950 mm(Design drawing prevail)
The industrial belt conveyor metal detector shown is a customized version and may not meet your requirements. The parameters above are for reference only. SGWEIGH has over 17 years of experience in manufacturing metal detectors and can provide multiple digital metal detector solutions free of charge based on your specific needs!
Industrial Belt Conveyor Metal Detector Stainless Steel Metal Detection System
1. Functions: Includes various functions and modes, and a self-test function.
2. Sensitivity: Adjustable in 1-10 levels.
3. Frequency display shows the degree of external magnetic field interference.
4. Adjustable frequency display sensitivity reflects metal content.
5. When trace metals are detected, sound, light, and instrument alarms are activated simultaneously; defective products automatically return to a stop state.
6. Self-test function allows the instrument to check its proper function, avoiding unnecessary maintenance.
7. The entire machine is made of industrial stainless steel, waterproof, rustproof, hygienic, and easy to clean.
8. The conveyor belt is imported from the Netherlands, environmentally friendly, and food-grade, suitable for temperatures from -20°C to 65°C, convenient for cold storage operations.
9. The probe (gantry) can be raised and lowered within the specified range.
10. A miniature speaker combined with an environmentally friendly motor ensures continuous operation without failure.
11. Leakage protection function.
12. Automatic counting function: counts finished products and defective products.
Industrial belt conveyor metal detector can be used to detect metallic impurities in chemicals, rubber, plastics, textiles, leather, synthetic fibers, and toys, as well as metallic foreign objects in pharmaceuticals, health products, biological products, cosmetics, gifts, packaging, and paper.
Industrial Belt Conveyor Metal Detector Stainless Steel Metal Detection System
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
1. Equipment installation and commissioning: The company provides detailed operation manuals and free operation training to ensure customers can use the equipment proficiently.
2. Technical support: The company provides 24/7 technical support to solve problems encountered by customers during use.
3. Spare parts supply: The company provides original parts, ensuring the quality and stability of the parts.
4. Quality assurance: The company is responsible for the products sold, guaranteeing that the equipment quality and performance meet industry standards.
5. Warranty policy: One-year warranty, lifetime maintenance, eliminating any worries for customers.
