Capsule Tablet Checkweigher for Pharmaceutical Medical Checkweighing Machine
Capsule tablet checkweigher for pharmaceutical medical automatically weigh individual products and compare the measured values against preset weight tolerance ranges; they identify and automatically reject underweight or overweight products, ensuring consistent product quality and reducing the need for manual inspection. Features of these capsule tablet checkweighing machines include a user-friendly touchscreen, adjustable weight limits, product recipe storage, production data reporting, alarm functions, and communication interfaces. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us for a quote.

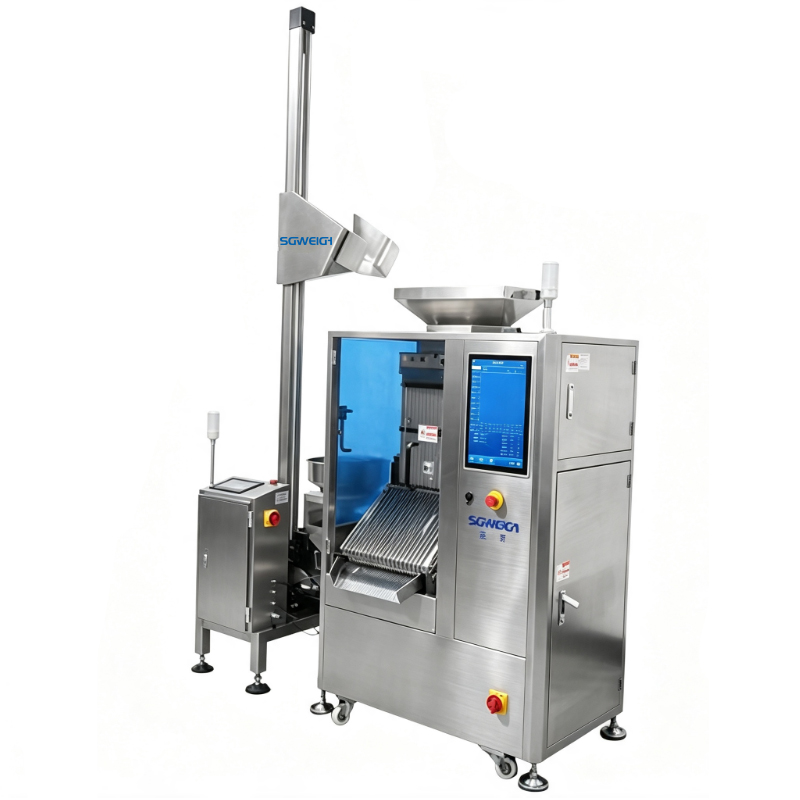

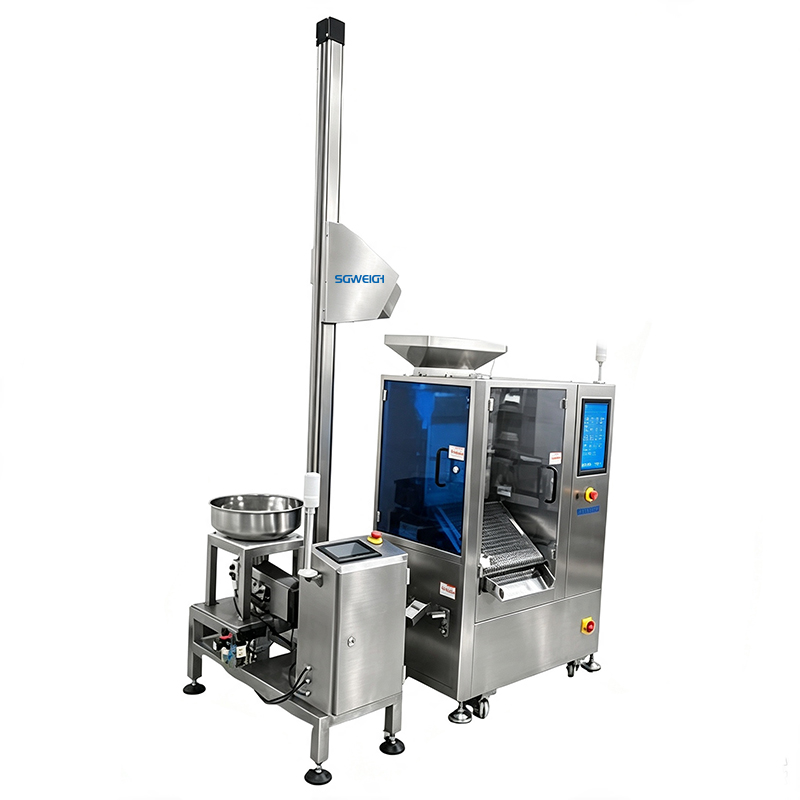

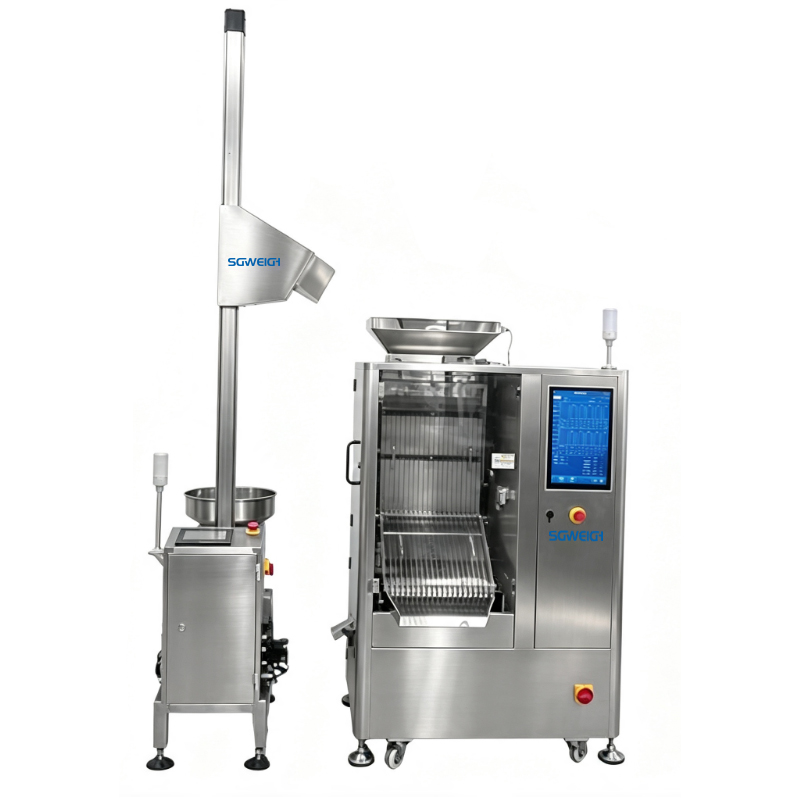

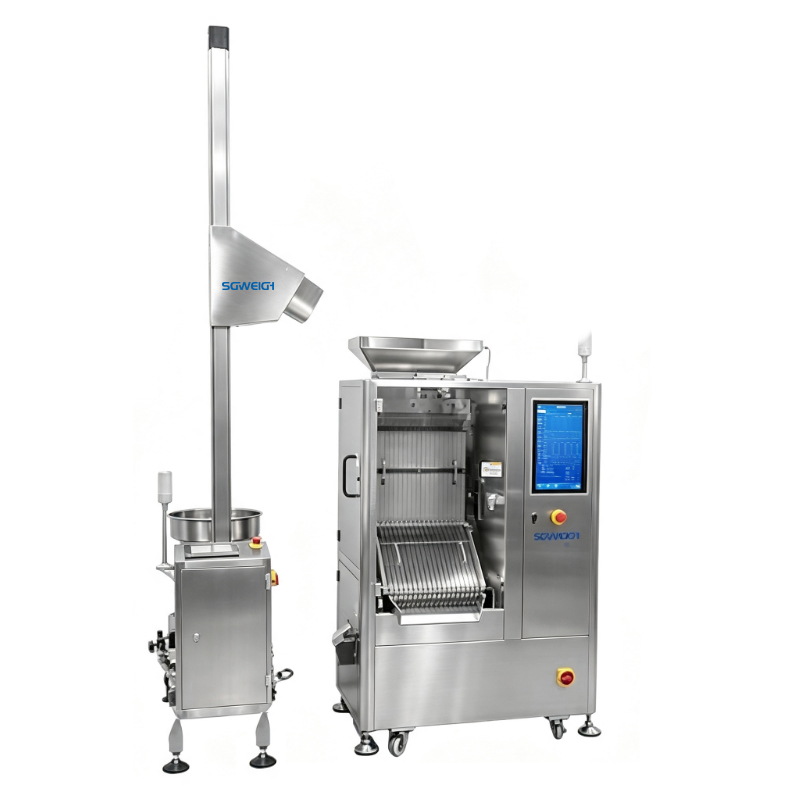

Capsule tablet checkweigher for pharmaceutical medical photos
1. High-precision weighing for capsule and tablet production.
2. Automatic detection of products outside preset weight limits.
3. Optional automatic rejection system for nonconforming products.
4. Continuous online weight inspection for production efficiency.
5. Reduced manual handling and improved inspection consistency.
6. Support for pharmaceutical quality control and production documentation, depending on system configuration.
These capsule tablet checkweigher for pharma offer reliable performance and are widely suitable for the production of various pharmaceutical and health supplement products. Ideal applications include hard capsules, pharmaceutical tablets, effervescent tablets, chewable tablets, vitamin tablets, nutritional supplements, herbal medicines, traditional medicinal tablets, veterinary pharmaceutical products, and more.
Type SG-JN10
Weighing Range 5-2000mg
Display Scale: 0.1mg
Highest sorting accuracy: ±0.5mg
Product specification: capsule:00#-5#; Wafer:φ5.5-φ18mm; Thickness 3-12mm; Pill:φ5.5-φ12mm(other sizes or shapes subject to testing)
Highest sorting ability: 7.5W pcs/HR
Number of columns: 10
Powder Supply: AC -220V ±10% 50HZ
Compressed Air: 0.3-0.9Mpa
Use environment: The temperature change during use should be not exceed the range of 1°C/Humidity 30%-70%RH(but no condensation)
Machine Weight:350kg
Shell Material:SUS304 Stainless Steel
The displayed products may not fully meet your specific requirements; our philosophy is to provide customized solutions based on your actual needs. Please provide the following information to our sales team, and we will assist you in selecting the right type of capsule tablet checkweigher for pharmaceutical medical:
1. Key product parameters and dimensions (length, width, height);
2. Accuracy requirements (±g);
3. Speed requirements (pcs/min);
4. Product weight range (including the maximum and minimum weight deviations for the same product).
Capsule Tablet Checkweigher for Pharmaceutical Medical Checkweighing Machine
Capsule Tablet Checkweigher for Pharmaceutical Medical Checkweighing Machine
1. Waterproof PO film + wooden crate
1) Dust removal and cleaning
2) Lubrication of drive components
3) Disassembly of the machine into modules
4) Wrapping modules in plastic film
5) Packing modules into plywood crates
6) Marking shipping details on the crates
2. Customized packaging according to client requirements.
Pre sales service
1. Provide free device consultation.
2. Provide standard equipment and process diagrams.
3. Provide reasonable solutions and free designs based on customer specific requirements to help select equipment.
Services during the sales process
1. Assist clients in designing factories and provide professional advice, as well as free factory drawings.
2. Welcome to visit our factory or the factories of domestic customers.
3. Check the machine before leaving the factory.
After sales service
1. One year warranty and lifelong maintenance.
2. Train frontline operators.
3. Provide operation/service/maintenance manuals.
