Small box sachet mini checkweigher is designed to help immediately control the weight of packaging in the production line, and detect in real time whether the weight of each product meets the requirements, suitable for bagged and boxed products. The high accuracy mini checkweigher model is a small checkweigher that is easy to use, uncomplicated and highly accurate, meeting the needs of factories with small installation space. You are welcome to contact us at any time for quotation.

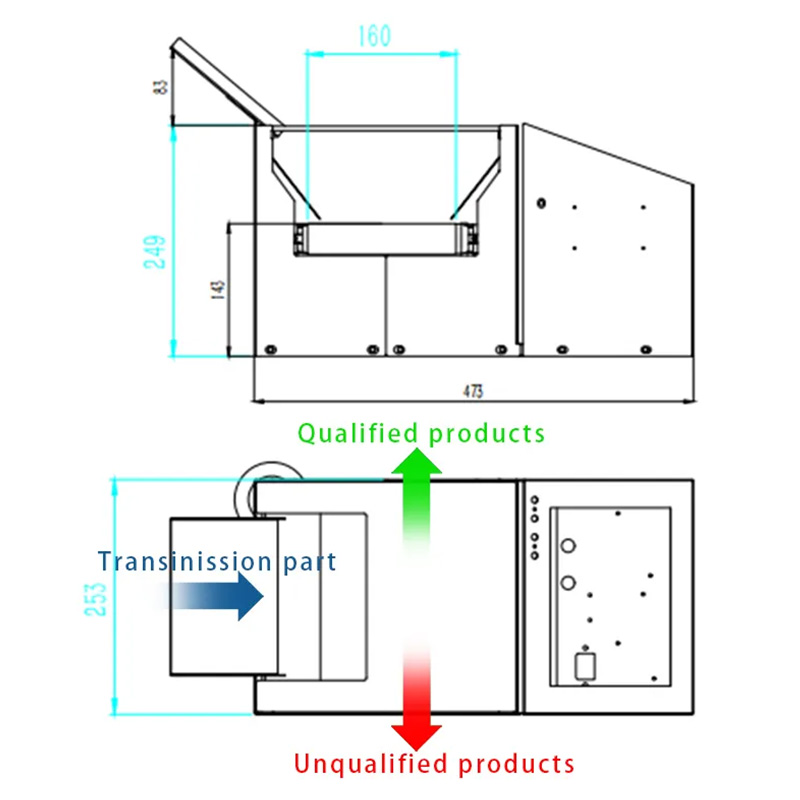

Small box sachet mini checkweigher photos
Type SG-MN100
Weighing Range ≤200g
Limited of product L: 523.5 W:243 H: 345mm
Accuracy ±0.1-0.3g Depends on product
Division Scale 0.1g
Belt Speed 0- 60 m/min
Max Speed 150 pcs/min
Belt Width 100mm
Machine Weight 65kg
Rated Power 0.15LW
Power Supply AC-220V 50HZ
Protection Level IP54
Material Size ≤200mm(L)*150mm(W)
Body Material SUS304
Power 200W
Main Material SU304 stainless steel
1. Human-machine interface: customized 7-inch high-definition touch screen, sensitive touch, fast response, clear text.
2. Weighing mode: qualified, overweight, underweight have different icons.
3. Weighing sorting: qualified products and unqualified products flow out in different channels, and the channels of qualified products and unqualified products can be switched freely.
4. Product storage: store the detection interval of 100 products, which can be retrieved, edited, called, and saved after power failure.
5. Data statistics: can count the total number, qualified, unqualified, qualified rate, quantitative number, and stop alarm when the quantitative number is equal to the qualified number.
6. Weighing collection: high-speed AD weighing collection system.
7. Weighing accuracy: ±0.1 grams.
8. Resolution: 0.1g.
9. Weighing speed: high-speed mode can reach 4000 pieces/hour.
10. Automatic zero tracking: automatic zero tracking.
11. Parameter saving: product parameters and setting parameters can be saved after power failure.
12. Step speed regulation: belt speed can be adjusted as needed.
13. Multi-language: Chinese and English by default, can be changed as needed.
14. Data export: can export detailed statistical data, qualified, out of tolerance, total, etc. (optional).
15. External communication: can be connected to 485 communication, support free protocol (optional).
16. Protection level: IP54
17. Power supply: 220VAC, 50Hz, power consumption 60-120w, 100v-270v single-phase power supply, complete and reliable grounding.
Most of our small box sachet mini checkweighers are customized according to specific project requirements.
If possible, please let us know more details about your project, such as material, weight range, speed, bag size, etc.
It is best to contact us in advance before ordering.
High accuracy mini checkweighers are widely use in the production and packaging processes of food and beverage, pharmaceuticals, daily chemicals, warehousing and logistics, electronic light industry, packaging and printing, auto parts and hardware, plastic toys, chemicals, agricultural and sideline products and other industries.
Small Box Sachet Mini Checkweigher High Accuracy Checkweigher Cheap Price
Small Box Sachet Mini Checkweigher High Accuracy Checkweigher Cheap Price
Packaging
Film pack inside, Wooden case outside
Shipping
- Upon receipt of payment, delivery date will be in 20-30 working days
- By Air, by Sea or by Express (DHL, UPS, TNT, EMS, etc.)
1. Training services:
We will train your engineer to install our weigher.You can send your engineer to our factory or we dispatch our engineer to your company.We will introduce your engineer how to install the weigher and how to fix problem.
2. Trouble shooting service:
Some times if you can not fix the problem in you contry,we will seed our engineer there if you need us to support.Of course,you need to afford the round trip flight ticket and accommodation fee.
3. Spare parts relpacement:
For spare parts support: For machine in guarantee period,if spare part broken,we will send you the parts free and we will pay the express fee,And please send us the spare part back,when machine is out of guarantee period,we will provide you the spare parts in cost price.
