Pipeline Powder Metal Detection Machine Industrial Digital Metal Detector
Pipeline powder metal detection machines can safely detect and remove metal contamination on the production line. With advanced processing technology and standardized inspection procedures, the product has high detection sensitivity and stable performance. The overall structure design is simple, firm and stable. Industrial digital metal detector adopts a full stainless steel frame with strong shockproof and anti-interference capabilities. The electronic control part has good protection effect and reaches the IP66 protection level. To know more about us, please you do not hesitate to contact us or visit our factory.

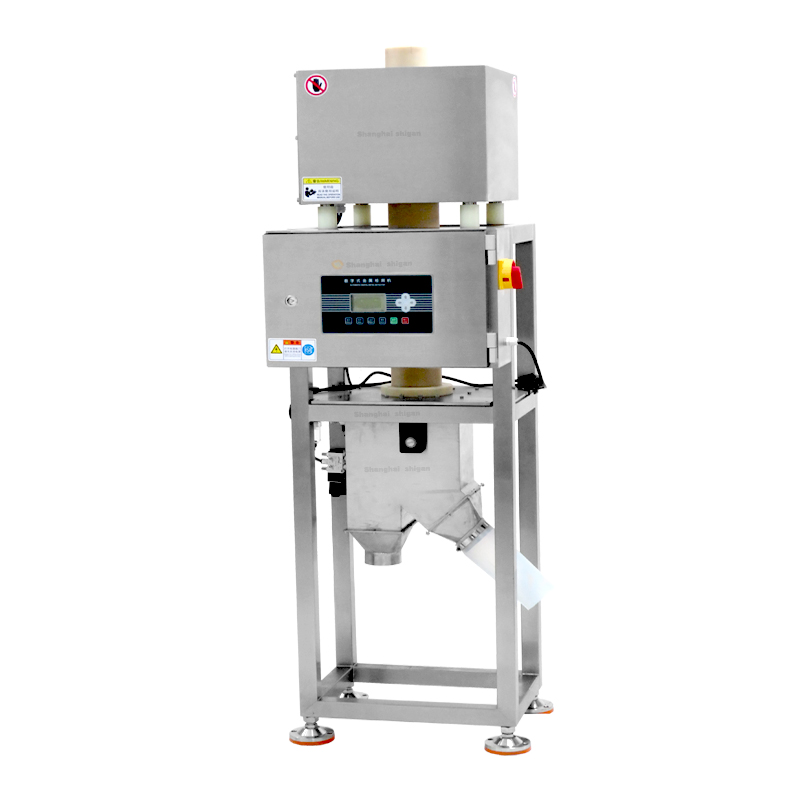

Pipeline powder metal detection machine photos
Type: SG-LS50
Detection Diameter(mm): 50/75/100/150
Capacity t/h2: 1/3/5/10
Rejecter Mode: Automatic flap rejecter(customizable)
Pressure Requirement: 0.5Mpa≥
Power Supply: AC220V (Optional)
Main Material: Stainless Steel (SUS304)
Sensitivity1Φd (mm): Fe 0.5/0.5/0.7/0.7; SUS 1.2/1.2/1.5/1.5
Pipeline Powder Metal Detection Machine Industrial Digital Metal Detector
1. The pipeline powder metal detection machine body is made of all-brushed stainless steel 304, and the conveyor belt is a food-grade PU special conveyor belt that meets international standards
2. LCD screen display, multiple languages can be selected, and human-computer dialogue operation can be easily realized
3. With memory function, through the rapid self-learning function, it can be used after automatic setting once and has a memory function, which can store more than 100 product testing parameters and can adapt to more products
4. Good waterproof performance, suitable for humid, cold storage and other environments
5. Can pass products containing water, salt and oil
6. The probe is a digital all-metal probe to ensure the stability and service life of the equipment
7. The motor speed is high (speed regulating motor can be optionally installed), supporting uninterrupted operation
8. Conveying direction: from left to right facing the operation panel
9. Alarm mode: sound and light alarm shutdown or non-stop rejection, multiple rejection devices are optional
Our company provides flexible digital metal detector solutions
Customized according to specific requirements based on production line space, speed, detection accuracy, and impact on materials.
Pipeline powder metal detection machine is suitable for online metal detection of powdered materials such as milk powder, juice powder, coffee powder, chocolate powder, grain powder, green tea powder, medicine powder, health powder, etc. in the pharmaceutical, food, pesticide and other industries.
Pipeline Powder Metal Detection Machine Industrial Digital Metal Detector
Machine packing :
Non-fumigation wooden case for export standard and comply with customs clearance requirement
Lead time :
10-15 days after payment received
Price term :
FOB term, CIF/CFR term(sea/air), DDU/DDP term( sea/air)
Negotiable payment term: T/T , LC, D/P ,D/A .,etc
Pre-sale service
1. Test customer engineer, learn how to use the pipeline powder metal detector machine.
2. Test the machine with product samples and our film materials.
3. Test machine video, will be sent to customers, then, pay the balance to us.
After-sale service
1. Manual.
2. Adjustment, setting video. Maintenance, available for us.
3. Telecommunication. Or face-to-face online communication is available.
4. This machine has a one-year warranty. During the warranty period, if there is no man-made damage, we will replace a new one for you. The warranty period will start from the machine shipped out and get the bill of lading.
