High-Speed Tablet Inspection Metal Detector Pharma Safety Metal Detector
This high-speed tablet inspection metal detector ensures your tablets and capsules are free of metal impurities, with highly sensitive sensors that can detect even the smallest particles of ferrous, non-ferrous metals and stainless steel, ensuring consumer safety and protecting your brand reputation. With an intuitive interface and automatic rejection system, pharma safety tablet metal detector enables hands-free operation and real-time monitoring, ensuring your workflow is uninterrupted and output is compliant. You are welcome to contact us at any time for quotation.

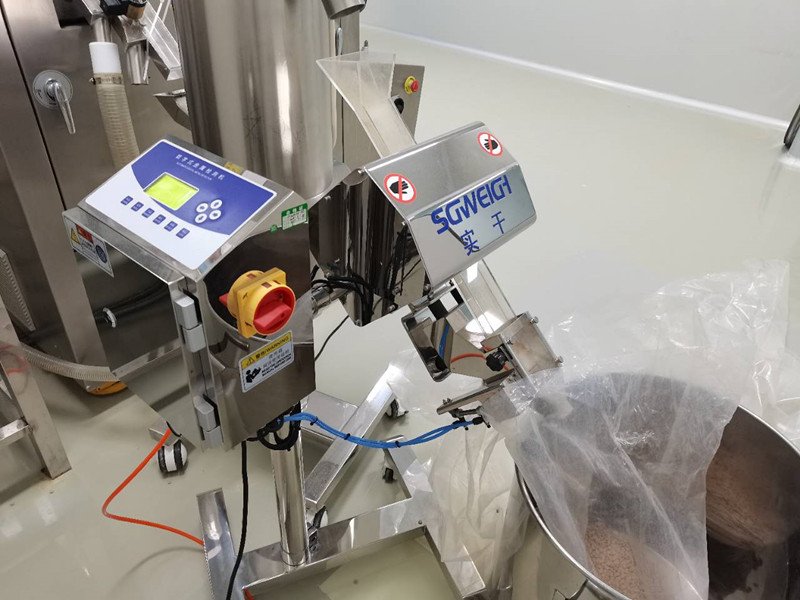

High-speed tablet inspection metal detector photos
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
High-Speed Tablet Inspection Metal Detector Pharma Safety Metal Detector
1. Magnetic Field Detection: High-speed tablet inspection metal detectors work by generating a magnetic field. As tablets pass through the detector, any metal contaminants interfere with the magnetic field, sending a signal that triggers an alarm or initiates a reject mechanism.
2. High Sensitivity: Detects ferrous, non-ferrous (aluminium, brass, etc.) and stainless steel contaminants, even at very low levels, ensuring the highest level of quality control.
3. Inline Detection: High-speed tablet inspection metal detector can be seamlessly integrated into the tablet press or packaging machine, enabling continuous real-time detection without interrupting production.
4. High Sensitivity and Accuracy: Capable of detecting the smallest metal particles (typically as small as 0.3mm for ferrous metals and 0.5mm for stainless steel), ensuring tablets and capsules meet strict purity standards.
5. Rejection System: When contaminated tablets are detected, the machine automatically rejects the defective product using a reject mechanism (e.g. air ejector or pusher), ensuring only uncontaminated product moves on.
6. Hygienic Design: Made of stainless steel with a smooth surface, it meets the strict hygiene standards of the pharmaceutical industry. The design minimises the risk of contamination and ensures easy cleaning.
7. Compact size: Tablet metal detectors are usually compact and can be easily integrated into small production spaces without major modifications.
8. User-friendly interface: Easy to set up, operate and adjust parameters with an intuitive touch screen interface. The interface allows operators to monitor performance, adjust sensitivity levels and access data logs.
Please provide the following information when sending an inquiry so that we can quickly provide you with accurate feedback and suitable capsule tablet inspection metal detector solutions.
1. Product details (product name, minimum/maximum size and weight).
2. Packaging details (packaging material, size, shape).
3. Capacity and detection accuracy requirements.
4. Other special requirements.
Pharma safety tablet metal detector can detect all types of capsules such as 000 00 0 1 2 3 4 5 SA, SB, and conventional tablets;
High-Speed Tablet Inspection Metal Detector Pharma Safety Metal Detector
High-Speed Tablet Inspection Metal Detector Pharma Safety Metal Detector
1> Attach safety labels, tighten screws, clean, lubricate, and prevent rust;
2> Disassemble into packages;
3> Wrap tightly with plastic film;
4> Fix in plywood box
5> Forklift into container
Suitable for long-distance land and sea transportation. In order to safely load and unload to the destination, we recommend that you choose full container transportation.
Pre-Sales Service
1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.
After-Sales Service
1. Training how to instal the machine, training how to use the machine.
2. One year warranty, lifetime repair
