High Speed Multi-Level Weight Sorting Check Weigher for Production Lines
Multi-level weight sorting check weighers replace manual checkweighing to achieve high-precision and high-speed checkweighing effects. They are the core equipment of automated production lines, which ensure product quality and improve production efficiency. The weight sorting check weigher for production line is made of 304 stainless steel, checks the weight of packaged products online, and sorts the grades according to the weight size (specifications) of the products to solve the work efficiency of automated production lines.

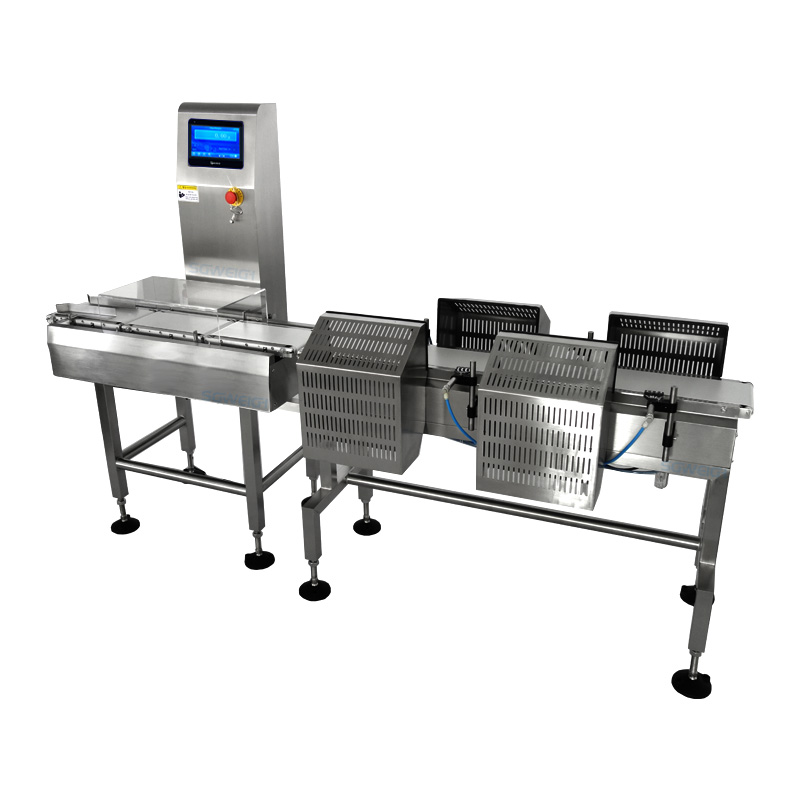

Multi-level weight sorting check weigher photos
High Speed Multi-Level Weight Sorting Check Weigher for Production Lines
Type SG-D300
Weighing Range 5-3000g
Limited of product L: 350 W:300 H: 3-200mm
Accuracy ±0.3g-0.5g Depends on product
Division Scale 0.1g
Belt Speed 0- 50 m/min
Max Speed 60 pcs/min
Belt Width 300mm
Machine Weight 60kg+150kg
Power Supply AC 220V 50HZ
Power 1000W
Main Material SU304 stainless steel
- Easy Integration: adjustable height, modular design
- Sturdy and robust construction: Stainless Steel 304
- Easy to use: touch screen operating system is easy to use with user password protection
- Easy to clean: detachable belt easy to to take apart for cleaning and set up.
- Variable Speed: Speed configurable based on application
- High Speed and Accuracy: equipped with high grade sensor and load cell with ultra fast processor for excellent accuracy and speed
- Zero Trace: Manual and Automatic Calibration, increase accuracy
- Report and Data Exportation: Built-in real time report, exportable to Excel file, storing up 1 year production data in USB disk
- Connectivity: standard ports for data exportation and connect to PC
- Self-learning: no need to calibration, system will find the best set up for the product. Configurable up to 2000 product settings
- Different Detection Modes: Default Mode, Static Mode, Power saving mode
- Faulty report: The system can detect and report faulty part of the system makes it easy to diagnose problems
- Output Ports: RS-485 and RS-232, able to Connect with printers and label machines
Our professional engineers will rigorously evaluate the production line characteristics, specifications and environmental factors to design the most suitable multi-level weight sorting check weigher solution for your production line to meet the different needs of various complex production lines.
Multi-level weight sorting check weighers are widely used in many industries such as pharmaceuticals, food, beverages, daily chemicals, light industry, electronics, hardware, industrial products, Chinese herbal medicines, aquatic products, poultry, fruits and vegetables, logistics, etc.
High Speed Multi-Level Weight Sorting Check Weigher for Production Lines
The Delivery Date: After receiving the payment, the delivery date will be within 15-30 working days
Packaging: Protective film + wooden case
Logistics: Air, sea or express (DHL, etc.)
The Freight: The cost of transport depends on the destination, mode of transport and the weight of the goods
Pay: T/T, Western Union, paypal
1. Service purpose: Shanghai Shigan Industrial Co., Ltd. is committed to providing customers with fast, decisive, accurate, thoughtful and thorough services to meet customer needs in equipment.
2. Service goals: The company takes high-quality service quality as the standard, aiming to win the satisfaction and trust of users.
3. Service efficiency: The company promises that once the equipment fails, it will provide an effective solution within 24 hours to ensure that the customer’s production progress is not affected.
4. Service principles: The company’s product warranty period is twelve months. During the warranty period, the supplier will provide free repairs and replacement parts for equipment damage caused by quality reasons. For equipment parts damaged outside the warranty period, the supplier will only charge the cost price. For equipment damage caused by customer human factors, the supplier’s repair or parts supply will be calculated at cost.
