Capsule Tablet Metal Detector for Pharma Safety Advanced Throat Metal Detector
This capsule and tablet metal detector for pharma safety boasts exceptional sensitivity, effectively protecting pharmaceuticals from metal contamination. Designed specifically for solid dosage form applications, it accurately detects ferrous, non-ferrous, and stainless steel particles without disrupting product flow. The consistent detection performance of capsule tablet throat metal detector across various capsule and tablet shapes ensures reliable results, enabling manufacturers to maintain high production volumes while achieving stringent quality control. You are welcome to contact us at any time for further information.

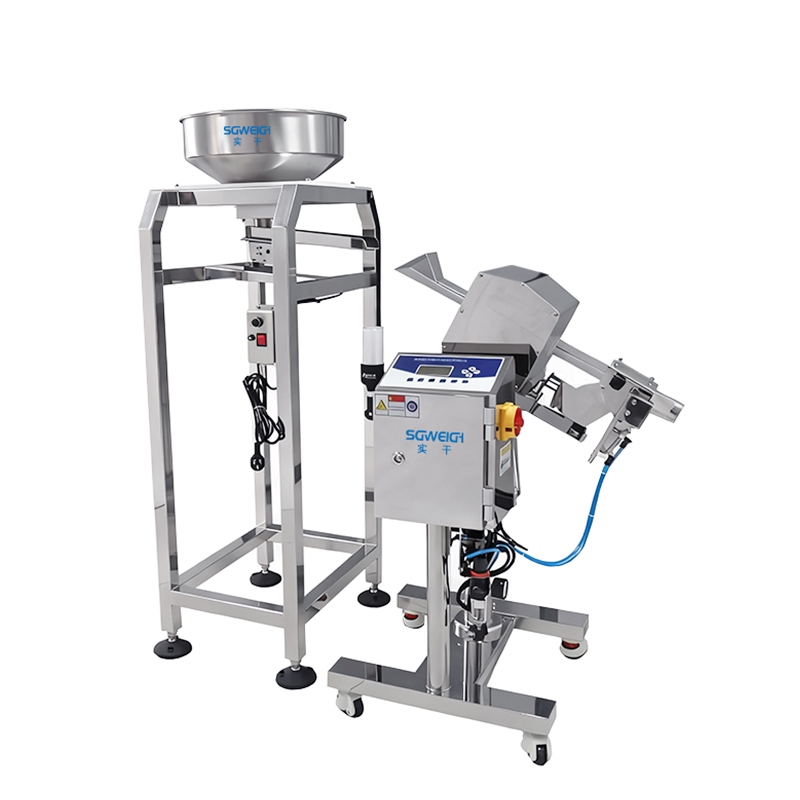

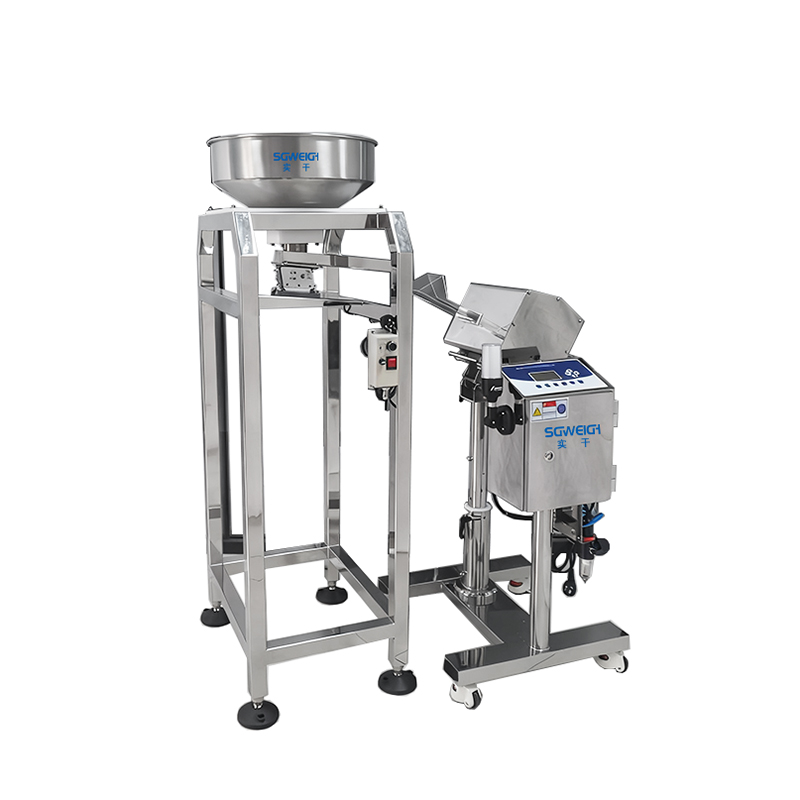

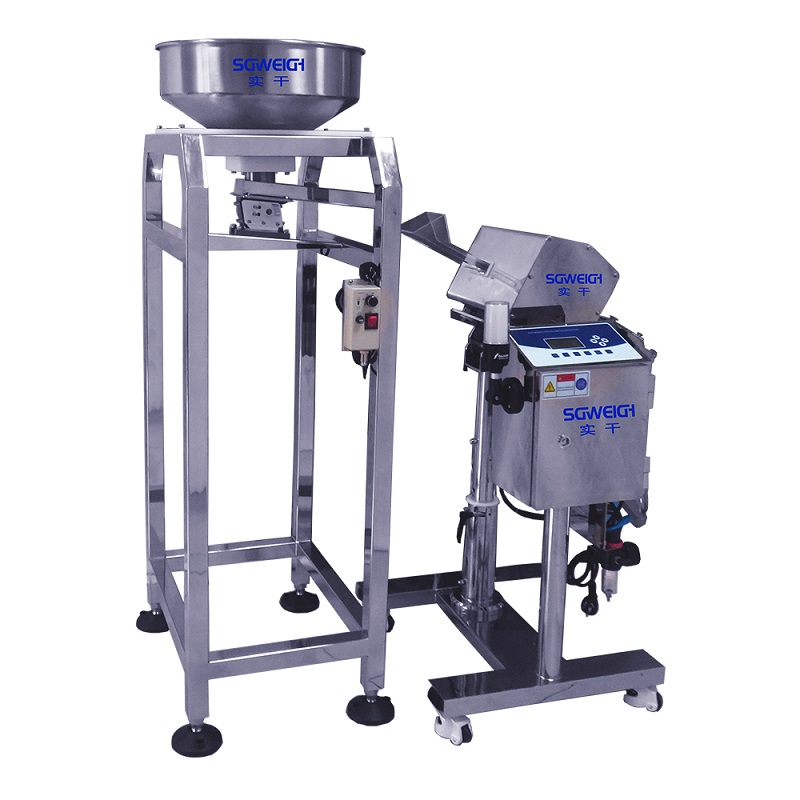

Capsule and tablet metal detector for pharma safety photos
Model: SG-M70
Inlet Height: Height：770-930mm Port size：Φ76mm
Outlet Height: Height：700-860mm Port size：Φ51mm
Dimension: 750*550*950mm
Output Capacity(pcs/h): 500 000pcs/hour
Metal detector sensitivity in empty state: ΦFe≥0.3mm 、ΦSUS≥0.5mm
Weight: 65kg
Power supply: 220V/50Hz
Capsule Tablet Metal Detector for Pharma Safety Advanced Throat Metal Detector
1. Magnetic Field Detection: The capsule and tablet metal detector for pharma safety operates by generating a magnetic field. When a tablet passes through the detector, any metal contaminants will interfere with the magnetic field, triggering an alarm or initiating a rejection mechanism.
2. High Sensitivity: It can detect ferrous-based metals, non-ferrous metals (aluminum, brass, etc.), and stainless steel contaminants, even at extremely low concentrations, ensuring the highest level of quality control.
3. Online Detection: It can be seamlessly integrated into tablet presses or packaging machines, enabling continuous real-time detection without interrupting production.
4. High Sensitivity and Precision: Capable of detecting the smallest metal particles (ferrous-based metals are typically as small as 0.3 mm, and stainless steel is typically as small as 0.5 mm), ensuring that tablets and capsules meet stringent purity standards.

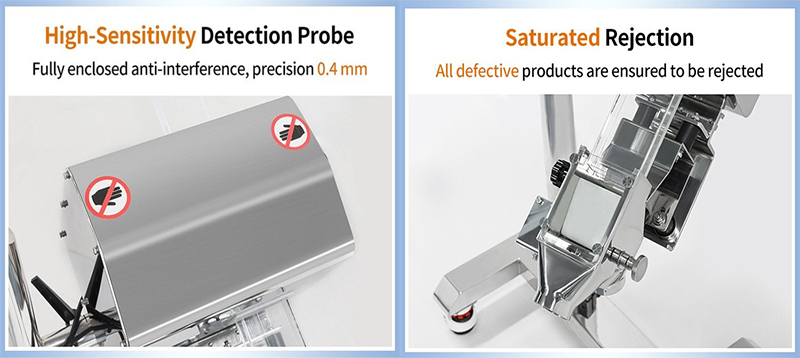

5. Rejection System: When a contaminated tablet is detected, the machine automatically rejects the defective product using a rejection mechanism (such as an air jet or pusher), ensuring that only uncontaminated products can proceed.
6. Hygienic Design: Constructed of stainless steel with a smooth surface, it meets the stringent hygiene standards of the pharmaceutical industry. This design minimizes the risk of contamination and ensures ease of cleaning. 7. Compact Size: Pill metal detectors are typically compact and can be easily integrated into small production spaces without major modifications.

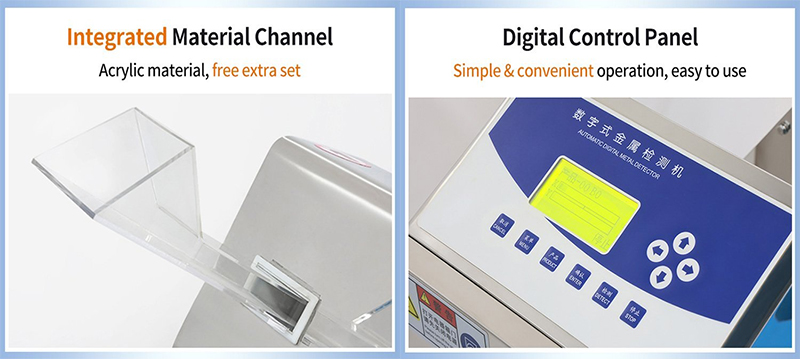

8. User-Friendly Interface: Utilizing an intuitive touchscreen interface, setup, operation, and parameter adjustment are easy. Operators can monitor performance, adjust sensitivity levels, and access data logs through this interface.
The capsule and tablet metal detector for pharma safety shown may not meet your requirements. We have professional technicians who can provide customized solutions based on the user’s product characteristics and application scenarios.
Capsule and tablet metal detector for pharma safety is suitable for various dosage forms: it can effectively detect tablets, capsules, powders, and liquid medicines.
Capsule Tablet Metal Detector for Pharma Safety Advanced Throat Metal Detector
1. Our machines undergo comprehensive testing and debugging before shipment to ensure stable and reliable performance.
2. The equipment is packaged in a thickened wooden crate, internally shockproof and moisture-proof, effectively preventing damage during transportation.
3. We cooperate with several professional international logistics companies, supporting multiple transportation methods, including sea, air, and land transport.
4. We ensure the equipment arrives at your factory safely and on time.
1. Equipment Installation and Commissioning: The company provides detailed operation manuals and free operation training to ensure customers can master the use of the equipment.
2. Technical Support: The company provides 24/7 technical support. Customers can contact engineers at any time to resolve any problems encountered during use.
3. Spare Parts Supply: The company provides original factory parts, ensuring the quality and stability of the parts.
4. Quality Assurance: The company is responsible for the products sold, ensuring that the quality and performance of the equipment meet industry standards.
5. One-Year Warranty, Lifetime Maintenance
