4-Channel Multi-Lane Checkweigher for Pharmaceutical Sachets Production Lines
Engineered for high-performance requirements, this multi-lane checkweigher system for pharmaceutical sachets operates via four synchronized lanes, significantly boosting production throughput without compromising accuracy. Each lane independently monitors sachet weight in real-time, enabling continuous inspection on fast-paced production lines. Ideally suited for large-scale pharmaceutical sachet production, the multi-lane checkweigher for production lines maximizes efficiency, minimizes downtime, and supports uninterrupted high-speed operation through stable, reliable weighing performance. If you are interested in our products and services, please keep free to contact us for a quote.

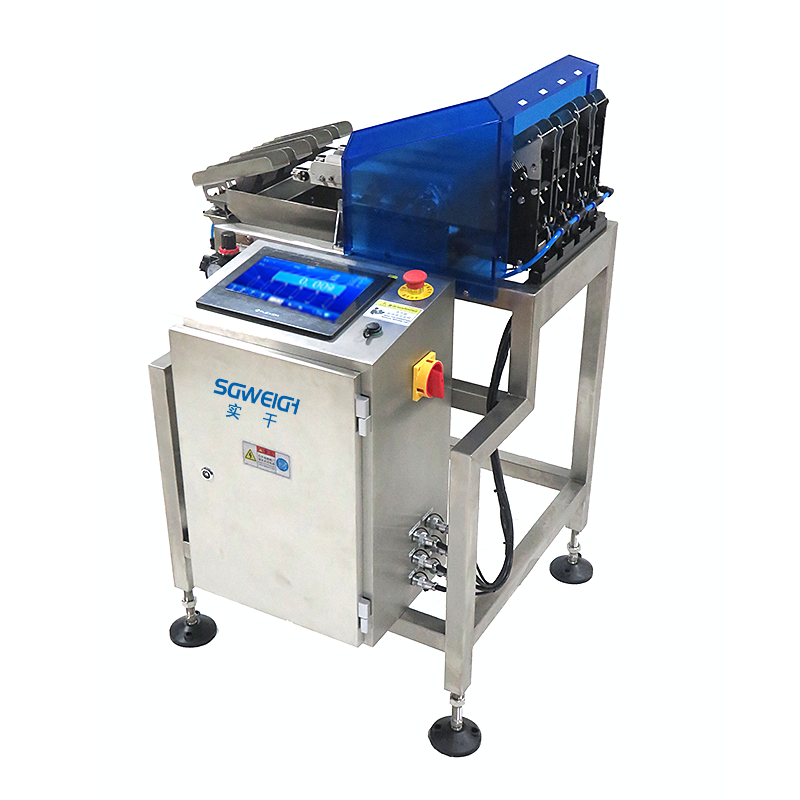

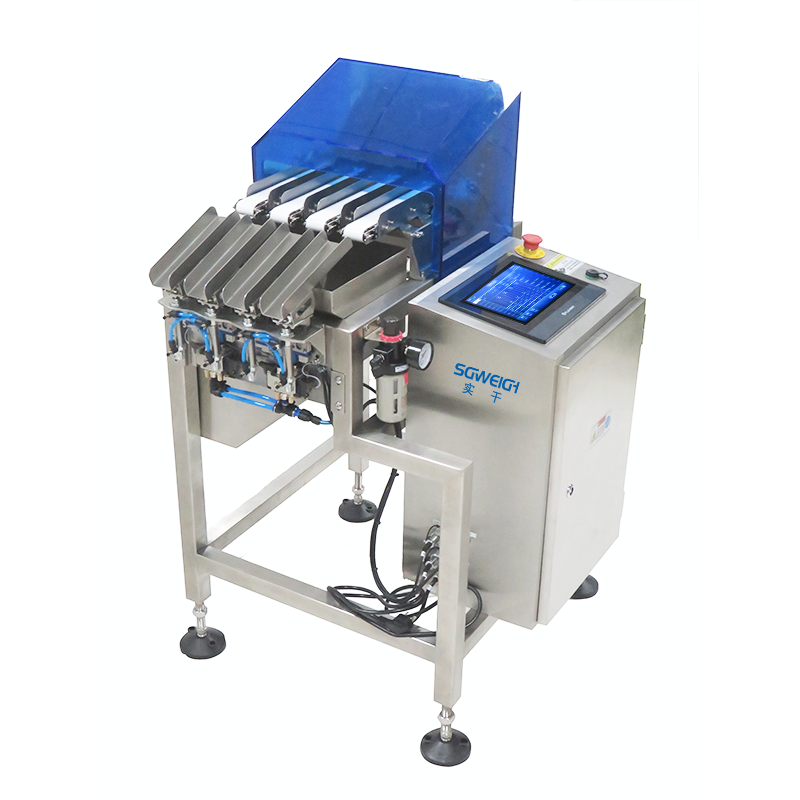

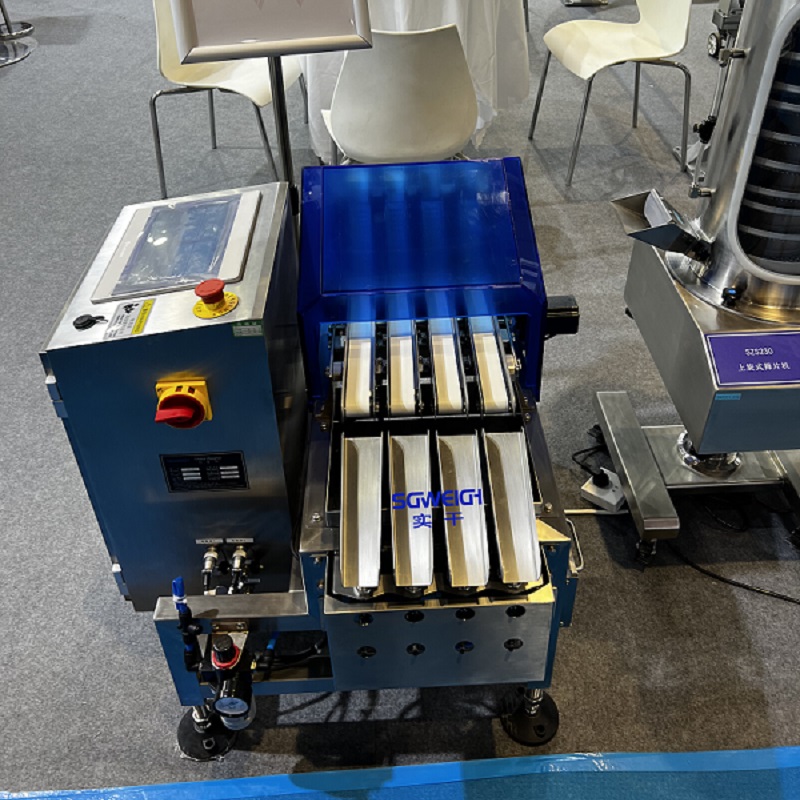

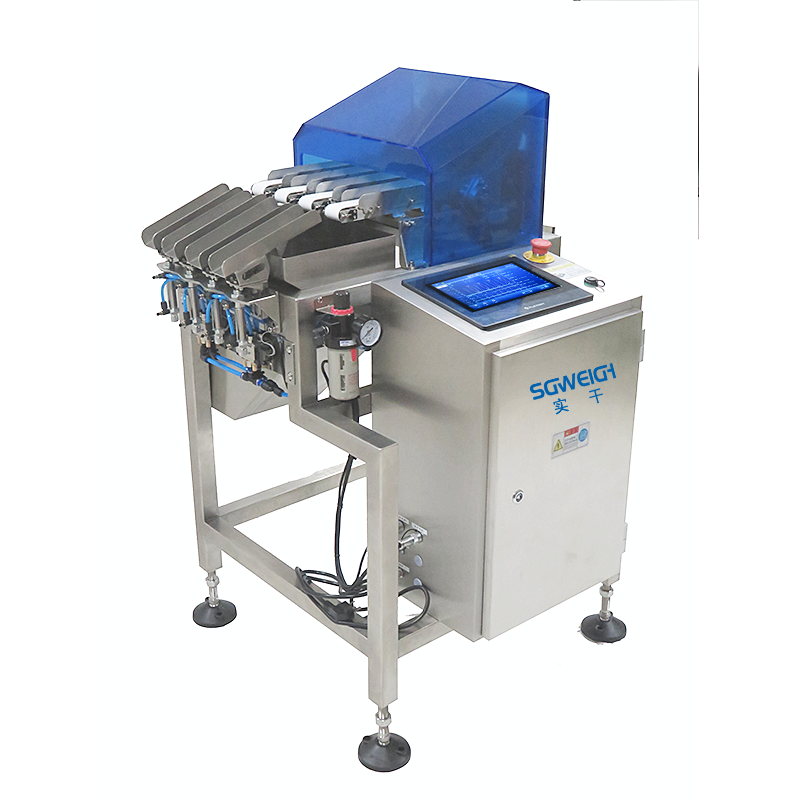

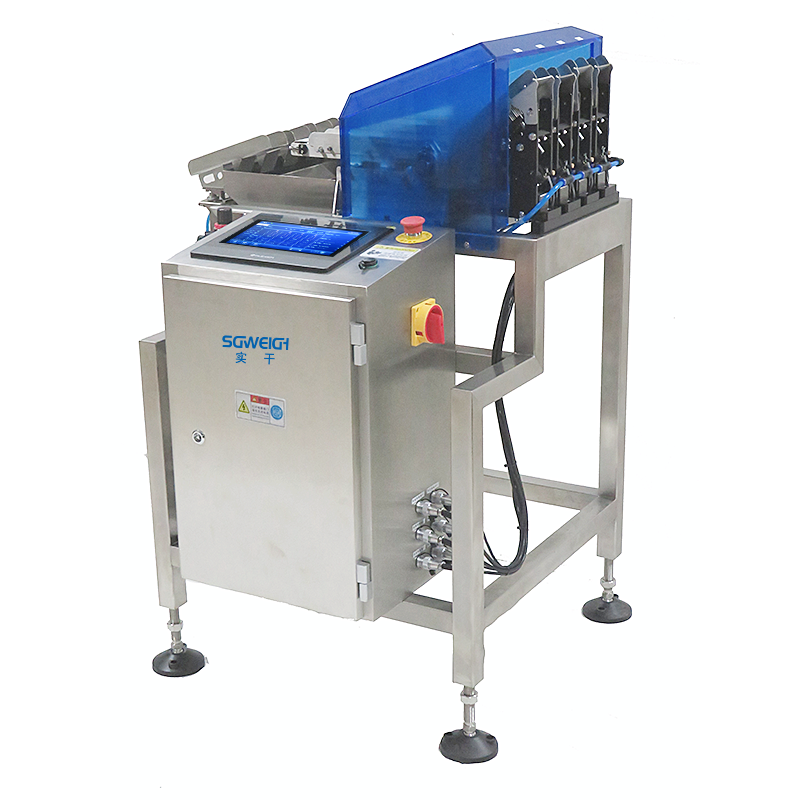

Multi-lane checkweigher system for pharmaceutical sachets photos
Model:SG-4X
Weighing range:1-50g
Minimum scale:0.01g
Weighing speed:The single-lane speed can reach up to 70 pcs/min (depending on the length of the product)
Restrictions of product:L:180 W:40 H:2-20(mm)
Operation way:Touch screen
Operation screen:12inch screen
Material:Stainless steel（SUS304）
Power supply:220V 50-60HZ
Power:About 200W
Weight:About160KG
4-Channel Multi-Lane Checkweigher for Pharmaceutical Sachets Production Lines
1. Simultaneous four-lane operation maximizes throughput
2. High-precision load cells ensure accurate weight detection
3. Automatic rejection system ensures only compliant products proceed down the line
4. Real-time data logging supports regulatory compliance and batch traceability
5. Rugged stainless steel construction ensures durability in demanding production environments
6. Multi-lane synchronization ensures smooth, precise operation
7. Flexible configuration accommodates products of various sizes and weights
8. Modular components facilitate easy maintenance
9. Multiple connectivity options enable automated reporting and monitoring
10. High-speed detection of lightweight and heavyweight products
The specifications shown here are for a standard 4-lane checkweigher; however, multi-lane configurations (e.g., 2-12 lanes) are available upon request. Our expert technical team can provide tailored multi-lane checkweighing solutions—please contact us for more details.
Multi-lane checkweigher system for pharmaceutical sachets is suitable for the simultaneous automatic checkweighing of small-package products such as food, pharmaceuticals, and daily necessities across multiple lanes.
4-Channel Multi-Lane Checkweigher for Pharmaceutical Sachets Production Lines
Internal plastic wrapping is used, while the outer packaging consists of sturdy wooden crates.
Our standard packaging process:
1) Dust removal and cleaning
2) Lubrication of drive components
3) Disassembly of the machine into modules
4) Wrapping modules in plastic film
5) Packing modules into plywood crates
6) Marking crates with shipping details
We can also accommodate specific packaging requests if needed.
1. Equipment Installation and Debugging: The company provides detailed operation manuals and free operation training to ensure customers can master the use of the equipment.
2. Technical Support: The company provides 24/7 technical support. Customers can contact engineers at any time to resolve any problems encountered during use.
3. Spare Parts Supply: The company provides original factory parts, guaranteeing the quality and stability of the parts.
4. Quality Assurance: The company is responsible for the products sold, ensuring that the quality and performance of the equipment meet industry standards.
5. One-year warranty, lifetime maintenance.
